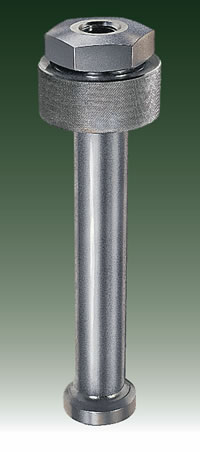

Here's the best answer yet to the need for a small yet rugged final filter for liquids

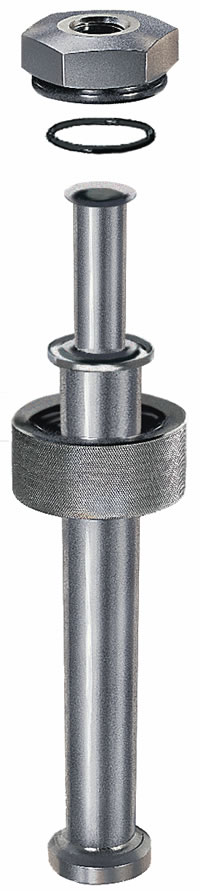

at pressures to 3000 psi. The filter contains a stainless wire mesh "bag" with a 14 square inch area. It can be thrown away when dirty, or cleaned and reused. Flow is from the inside
to the outside
of the element; contaminant stays trapped inside. The straight through
design has no elbows, turns or internal
pockets to create pressure drops or
collect sediment, and they're easy
to flush out.
The mini-bag filter is very easy to
service too. Just spin the knurled collar loose, push the housing out of line a bit, remove the element, slip a new or clean one in, and you're back in business.
The seal is a special, Teflon-encapsulated Viton O-ring. It can be tightened
by turning the knurled collar,
usually by hand.
Specifications - Pressure rating: 3000 psi
- Differential pressure rating: 25 psi
- Port sizes: 3/8 inch NPT
- Micron retention ratings (absolute): 25, 50, 75, 100 125 and 150
|
|
