End the high cost of element change-out with
the Platinum 900-cartridge filter system. Imagine changing a filter element only once or twice a year, instead of changing several cartridges on a weekly or daily basis! A single cartridge unit has the life of 200 standard wound or 50 pleated cartridges, reducing maintenance.
- 600 sq. ft. of surface area
- 100 lbs. (approx.) of dirt carrying capacity
- Rated 0.5 micron to 70 micron @ §5000 or 99.98% efficiency
- Flow rates to 400 gpm

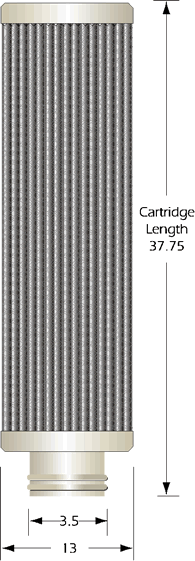

- 13-inch diameter and 40-inch length
- Rosedale housings can hold 1, 3, 4, 7, or 8 cartridge elements
These elements are manufactured in a unique patented pleat arrangement (U.S. Patent No. 5824232) that optimizes its physical size and maximizes effective surface area. Flow channels distribute a steady flow into the element.
Pre-filtration and final filtration layers provide high efficiency. A low fluid flux rate maximizes dirt
containment. This means element life is extended and productivity is increased, resulting in fewer cartridge change-outs, less labor and lower replacement costs. With the Platinum 900, cartridge change-out is significantly extended.
This design uses only the highest materials and
most advanced manufacturing processes. Stainless steel core and end caps are ideal for higher
temperature applications. The double o-ring seal insures sealing in housing, eliminating bypass.
|
|
