Water Filter Selection Guide

The Generation ll All Plastic Model 8 Bag Filter
(For more information on the Generation ll, click here.)

RosedaleÕs Generation ll model 8-sized polypropylene bag filters are made in a one-piece, seamless body that offers excellent resistance to corrosion. It is rated to 100 psi @ 150¡F and flows to 100 gpm.

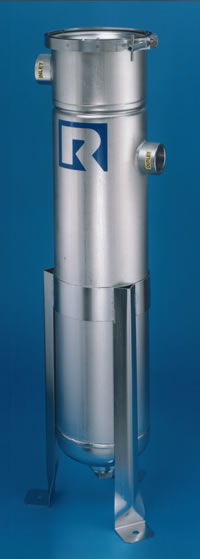

Model 8 Filter Housing With Quick Opening Clamp Cover
(For more information on the Model 8-125, click here.)

These high-capacity bag filters are rugged and low in cost. The Quick Opening Clamp Cover is quick and easy to remove. The housing is rated at 125 psi and flows to 100 gpm.

Click here for more information on filter media.

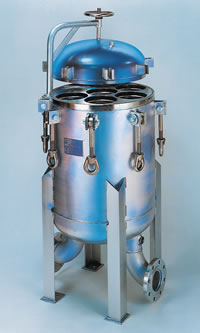

Extra High Capacity Multi-Bag Filters
(For more information on the Multi-Bag Filters, click here)

These multi-bag filters offer a wide range of flow capacities and contaminant holding capabilities. They contain from 2 to 23 baskets, all the same size. They are fitted with perforated stainless steel baskets designed to hold disposable or cleanable filter bags. Industry standard size bags are used: the standard 30-inch baskets take bag size 2, and optional 15-inch baskets take size 1. The standard pressure rating for all models is 150 psi. All housings can be supplied with a ASME code stamp, if required.
