Model 4

Model Number: 4-6-2P-4-500-C-B-S-B-P-1/4--

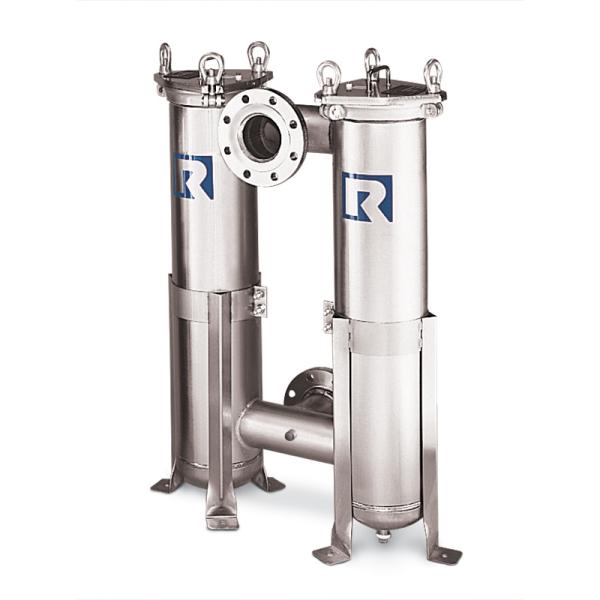

Click image to enlarge

Quantity:
Price (taxes and shipping are not included):
$1,157.00
Total Price:

Model Number: 4-6-2P-4-500-C-B-S-B-P-1/4--
Model 4 Basket Strainer and Bag Filters
Available in 2 pressure ratings and size 3 filter bags and size 4 filter bags. In all cases, covers are easily removed without special tools, and the basket or bag is easily cleaned or replaced.

Features of Model 4 Filter Housings
  • Low pressure drops
  • Covers are O-ring sealed
  • Carbon steel, or stainless steel (304 or 316) construction for vessels
  • All housings are electropolished to resist adhesion of dirt and scale
  • Adjustable-height legs, optional
  • O-ring seals: Buna N, EPR, Fluoroelastomer, PTFE
  • ASME code stamp available on select models
  • Liquid displacers for easier servicing
  • Two pressure ratings: 200 psi (with clamp cover) and  500 psi (with eyenut cover)
  • Pipe sizes 1 thru 2-inch, NPT
  • Two basket depths: 6, or 12 inches (nominal)
  • Accepts trade size #3 or #4 filter bags
Options for Model 4 Bag Filters
  • Different outlet connections
  • Higher pressure ratings
  • Extra-length legs
  • Heat jacketing
  • Epoxy coating
  • Displacers
  • Magnets
  • Duplex units available



Click here to order filter bags for this housing.

Specifications
  • Model Number: 4-6 Carbon
  • Housing Size: 6 Inch
  • Pipe Size, NPT and Flanged: 2-in. Female NPT
  • Outlet Style: Same Side High
  • Pressure Rating: 500 psi
  • Housing Material: Carbon Steel
  • Cover Seal: Buna N
  • Basket Seal Requirement: Seal Required (On Strainer Type Baskets)
  • Basket Seal Material: Buna N
  • Basket Type: Strainer Basket, Perforated Metal, Model 4-6
  • Basket, Media Size: 1/4 in. Diameter
  • Displacer: No Displacer
  • ASME Code Stamp: No Code
