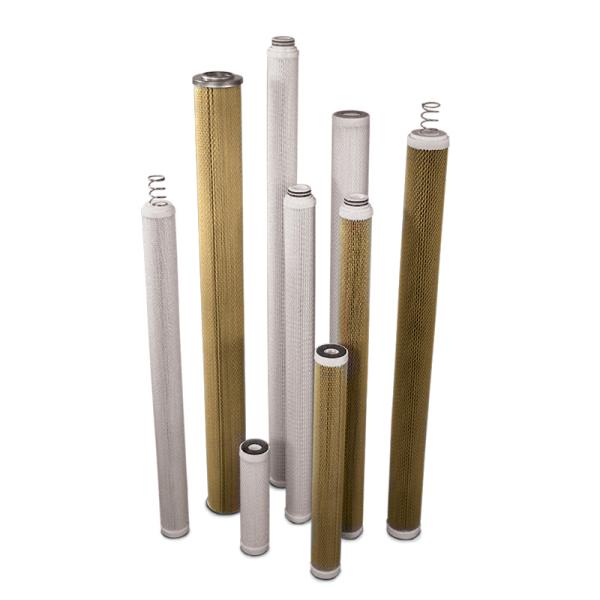

Pleated Filter Cartridges

Specification PDF PDF Connect with an Expert
Click image to enlarge

Our AB Series filter cartridges have pleated filter media to provide increased contaminant-holding capabilities and longer service life. These high performance cartridges are 99.98% efficient with micron ratings from 70 down to 0.5. Our AB series is compatible with most filtration housings on the market, including Rosedale’s HSS Series, our Multi-Cartridge Housings, and Rosedale Models 4, 6, and 8.

Use the drop downs below to narrow your selection based on material, bag style, micron rating, and length (with options ranging from 10 to 40 inches). The prices outlined below are all for 10 piece packages. Contact us for more information regarding our line of pleated cartridges.



Our AB Series filter cartridges have pleated filter media to provide increased contaminant-holding capabilities and longer service life. These high performance cartridges are 99.98% efficient with micron ratings from 70 down to 0.5. Our AB series is compatible with most filtration housings on the market, including Rosedale’s HSS Series, our Multi-Cartridge Housings, and Rosedale Models 4, 6, and 8.

Use the drop downs below to narrow your selection based on material, bag style, micron rating, and length (with options ranging from 10 to 40 inches). The prices outlined below are all for 10 piece packages. Contact us for more information regarding our line of pleated cartridges.

Material Options for Pleated Water Filter Cartridges

Pleated filter cartridges are a type of sediment filter made from synthetic materials. They are a great choice where particles are fairly uniform in size and high throughput is desired. Material options for pleated filter cartridges include:

Polyester (PE)

Polyester pleated filter cartridges are reusable and highly durable. PE cartridges are well suited to portable water, well water, swimming pools, and other light industrial applications.

Polypropylene (PP)

Polypropylene pleated filter cartridges are chemical resistant and have separate gradient layers to catch different sized particles. PP filter cartridges can be used in residential, commercial, and industrial filtration applications.

Cellulose

Cellulose pleated filter cartridges are designed with fused end caps to form a gasket sealing area. These cartridges are cost-effective, yet highly efficient at collecting contaminants in general filtration applications.

Fiberglass

Micro fiberglass cartridges have a support layer made from a combination of PE & PP to enhance collection of colloidal materials. These cartridges provide a cost-efficient option for achieving maximum contaminant-holding capacity.


Benefits of Pleated Cartridges for Your Filtering Application

Our selection of absolute rated pleated cartridges provide an economical, yet high performing solution for your filtration system needs. Additional benefits of pleated cartridges include:
  • Greater surface area for increased holding power
  • Low pressure drop, resulting in increased flow rate
  • Catches smaller particles compared to non-pleated alternatives
  • Longer operational time between change-outs
  • Decreased maintenance and filtration costs


Industry Leading Experts in High Performance Filtration Solutions

Rosedale Products is your trusted source for all types of advanced liquid and gas filtration system needs. We produce exceptional liquid filtration systems and waste minimization components for many industries. From our headquarters in Ann Arbor, Michigan, we can develop custom filtration housings and components to meet your unique specifications. In addition to our pleated filter cartridges, we also provide:

Contact Rosedale for Cost-Effective Pleated Cartridge Filters Today

Our technicians are standing by to help you determine the best cartridge for your filtration needs. Click on any of the options above to add to your cart. Contact us today for more information regarding our products or services.
