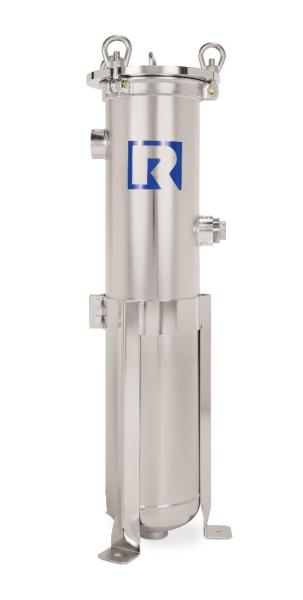

Model NCO Filter Housing

Specification PDF PDF NEED HELP?
Click image to enlarge
Features of the NCO Filter Housing:
  • Maximum flow rate of up to 100 GPM
  • NCO8-15 accepts size 1 filter bags
  • NCO8-30 accepts size 2 filter bags
  • Eye-bolt cover
  • Maximum 2" NPT connections
Part Number:
Model NCO and NLCO Bag or Cartridge Filter Housings
Low cost filter housings for flow rates to 100 gpm*.

NCO high-capacity bag filters offer an exceptional value in basic filtration applications. Offered in trade sizes 1, 2, and 12, the NCO is also available with our Platinum 700 cartridge series. NCO housings provide large dirt-holding capacity combined with a rugged design rated to 150 psi. The housings incorporate an eyenut cover that is easily removed, reducing time spent on bag or cartridge change-out. The NCO bag housing offers versatility for any piping arrangement, utilizing our unistyle design (side and bottom outlet). Two connection sizes are available for both bag and cartridge filters. The NCO housings are electropolished creating a smooth, easy-to-clean surface. A variety of filter bags or cartridges (rated 0.5μ absolute to 100μ nominal) can be utilized in this housing. Keep your filtration process cost effective without sacrificing quality.

  • Permanently piped housings are opened without special tools
  • Carbon or stainless steel housings
  • Covers are O-ring sealed
  • O-ring seals: Buna N, EPR and Fluoroelastomer
  • 150 psi rated housing
  • Heavy-duty basket, over 50% open area
  • Uses standard number 1, 2 or 12 size bags and 500 or 700 series cartridges
*Based on housing only. Fluid viscosity, filter bag used, and expected dirt loading should be considered when sizing a filter.
