Sanitary Cartridge Filters

Specification PDF PDF NEED HELP?
Click image to enlarge

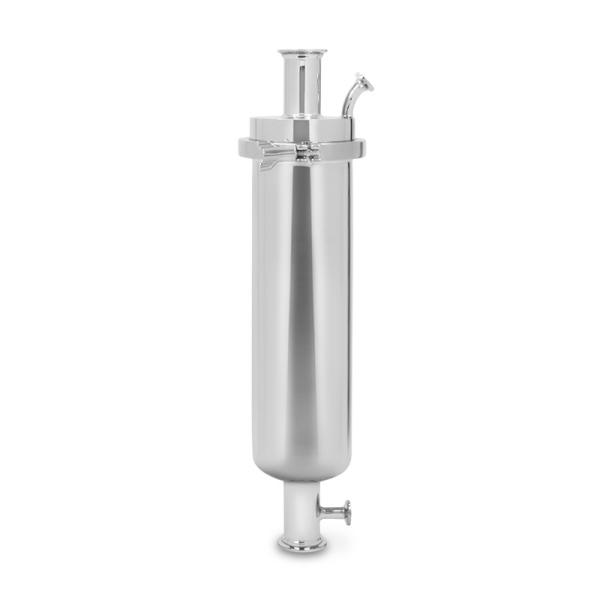

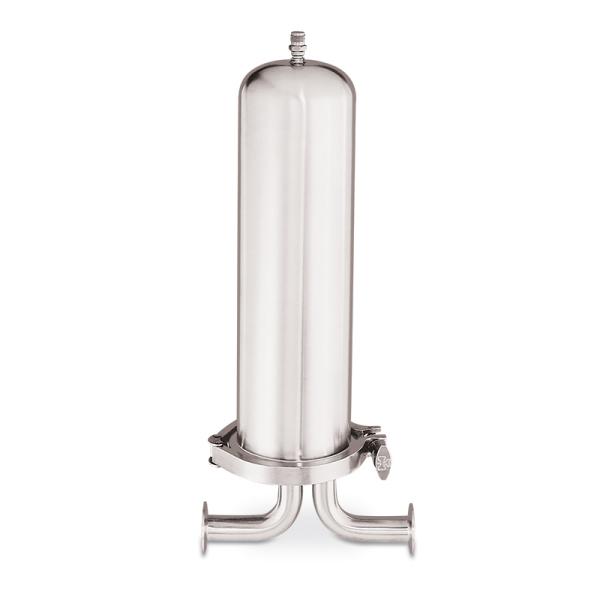

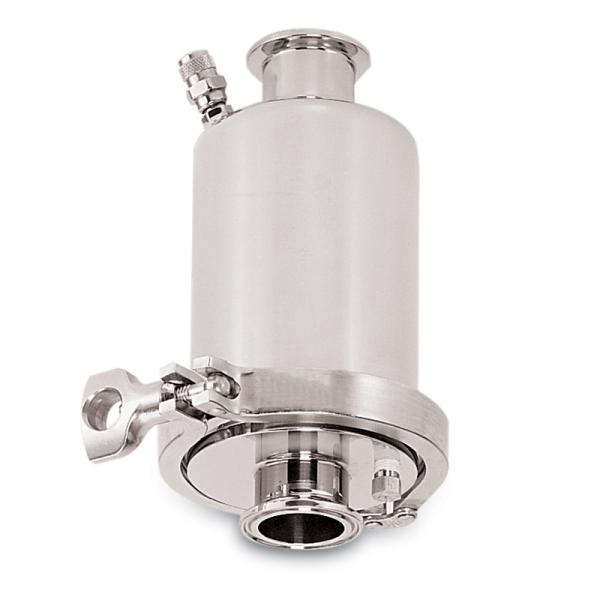

Rosedale sanitary service cartridge filters for sterile filtration are constructed of polished 316 stainless steel. Our "T" and IL  style sanitary housings are rated for 150 psi pressure and have quick-release clamps for access to the cartridge. Outlets and inlets have sanitary flange connections. All internal surfaces can be visually inspected (and easily cleaned in place). The housings can be configured to use a 222 or 226 style cartridge.

Construction
Housings are all welded construction with all wetted parts of 316 stainless steel. All welded attachments are 300 series stainless steel. The materials and manufacturing process exceed industry standards for sterile filtration.

Applications
Dairy, beverage, and other foods and pharmaceuticals. They also make excellent pre-filters upstream of ultra-fine cartridge and membrane filters.

Specifications
  • Material: 316 stainless steel
  • Surface Finish: 150 grit (25 RA)
  • Inlet/Outlet Connection: 1" sanitary flange
  • Vent/Drain: purge valves
  • Cartridge: 10, 20 and 30 inch lengths
  • Operating Pressure: 150 psi (10 bar)
</
