Vibrating Filter
High-Frequency Sieving Action Prevents Rapid Filter Loading
The Rosedale Vibrating Filter uses a closed pressurized system to prevent filter cake from forming on the element surface and allow desirable solids to pass through. This high-frequency filter contains a perforated stainless steel basket lined with either stainless wedge wire or wire cloth.Rosedale Products is your source for high-quality filtration systems for a variety of industrial applications. Use the drop-downs below to filter options based on bag style and micron rating. The housing and basket are purchased separately and will be assembled by the factory. Contact our team of experts for more information.
High-Frequency Sieving Action Prevents Rapid Filter Loading
The Rosedale Vibrating Filter uses a closed pressurized system to prevent filter cake from forming on the element surface and allow desirable solids to pass through. This high-frequency filter contains a perforated stainless steel basket lined with either stainless wedge wire or wire cloth.Rosedale Products is your source for high-quality filtration systems for a variety of industrial applications. Use the drop-downs below to filter options based on bag style and micron rating. The housing and basket are purchased separately and will be assembled by the factory. Contact our team of experts for more information.
How Does the Stainless Steel Vibrating Filter Work?
As in sieving, the screen through which the product passes is rapidly agitated, preventing the build-up of smaller particles on the contaminant stopped at the screen. By keeping oversized material off the screen, the smaller particles can reach the screen and pass through.Unlike standard sieving, the vibrating filter works in a closed pressurized system that greatly increases throughput. The high-frequency vibration also serves to de-lump agglomerated material. An air-driven vibrating motor at the bottom causes the basket to vibrate. The vibration rate is changed by varying the air pressure between 25 and 60 psi. High pressures produce higher frequencies. The basket is isolated from the housing, so very little vibration is transmitted to housing and piping.
Vibrating Filter Parts & Features

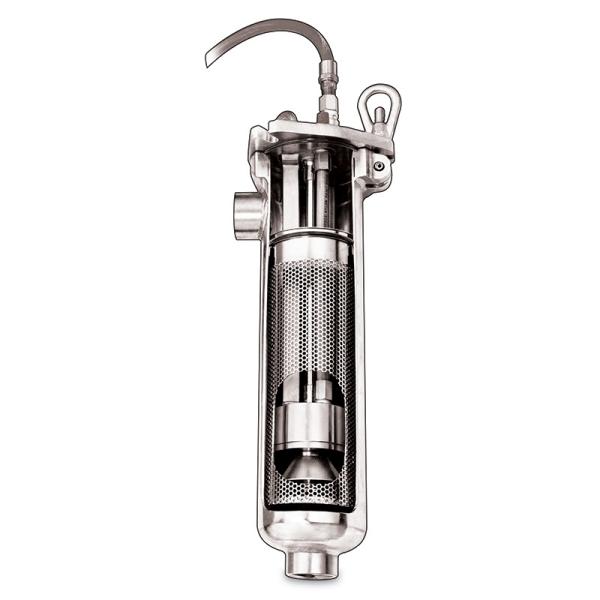

Our high flow vibrating filter is made up of a stainless steel housing and a, perforated stainless steel basket lined with either wedge wire or wire cloth. Housing and basket sold separately. System features include:- 3/8” NPT port (supplied clean, unlubricated pant air at 25-60 psi)
- Outlet for purged material
- Air outlet (to silencer)
- Seal
- Air hoses
- Vibrating motor
- Fluid inlet and outlet
High-Frequency Sieving Action Filter Applications
Our vibrating filter offers an ideal solution for any product containing desirable solids that can be classified by size. Common applications include:- Paints & coatings
- Medicines
- Paper coatings
- Foods
- And more
