Aluminum Housing

Price (taxes and shipping are not included):
Package Qty: 1
Total Price: $1,081.00

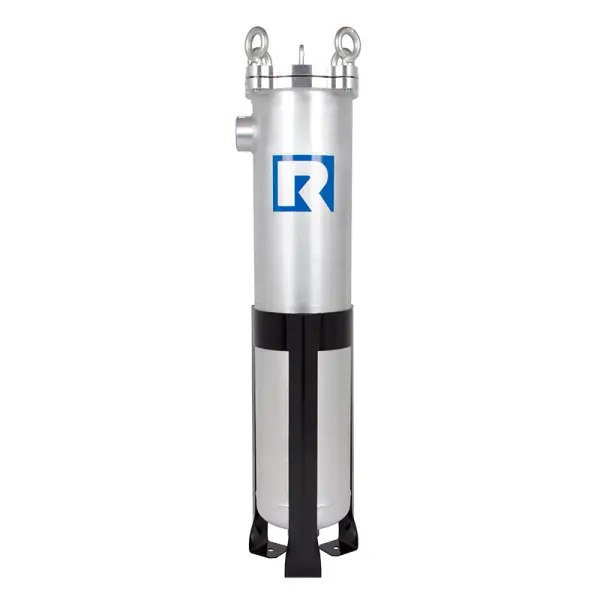

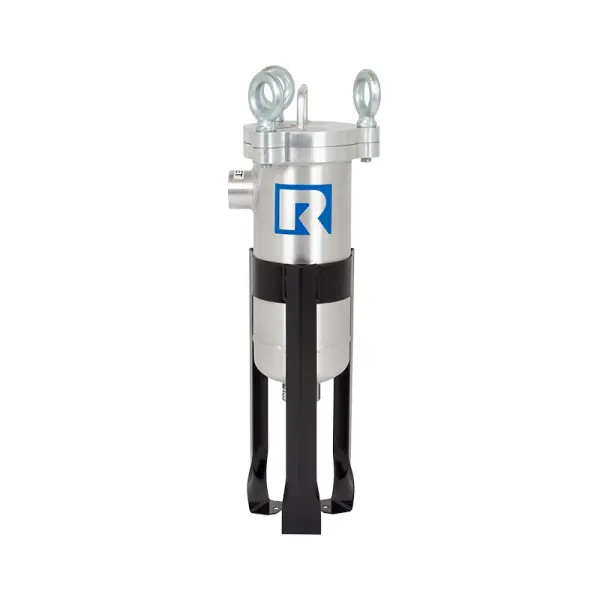

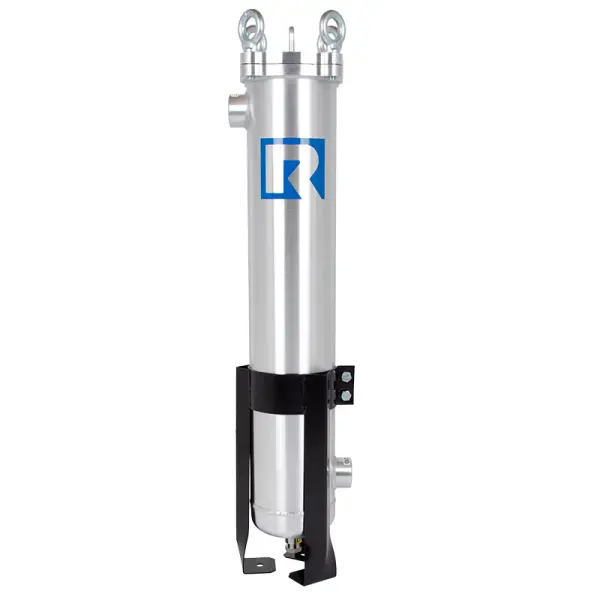

Aluminum Housings
Spark Free, Heavy Duty Housings!

Economical aluminum AL Series housings for commercial, industrial and process applications. Aluminum can be used in place of carbon steel, stainless steel or plastic in many applications with superior results. It is especially effective in water and water based applications such as machine tool coolants and cooling towers. Also ideal for diesel, oils, and fuels, as well as many others.

  • 3/4” through 3” pipes sizes
  • NPT connections
  • Light weight lid with handle
  • O-ring sealed
  • Max temp. 250°F
  • Pressure ratings to 300 PSI
  • Strainer baskets optional
  • 5 outlet styles
  • Stainless steel filter bag baskets
  • Tripod legs

Click here to order filter bags for this housing.
  • Model Number: Model 50 - 12 Inch Basket
  • Housing Size: 12 Inch Basket - Size 4
  • Inlet & Outlet Size (NPT): 2 Inch NPT
  • Outlet Style: Side High 180
  • Pressure Rating: 300 PSI
  • Housing Material: Aluminum
  • Cover Seal: Ethylene Propylene
  • Basket Type: Strainer Basket, Perforated Metal
  • Basket, Media Size: 1/16 Inch Perforations - Model 50-12, 304S
