Single Cartridge Filter Housings

NEED HELP?
Click image to enlarge
Our single cartridge housing offering include models that accept standard 10",20', 30" and 40" filter cartridges, 7' x 18" lube oil cartridges, 40" 700 series cartridges as well as 60" high flow cartridges.

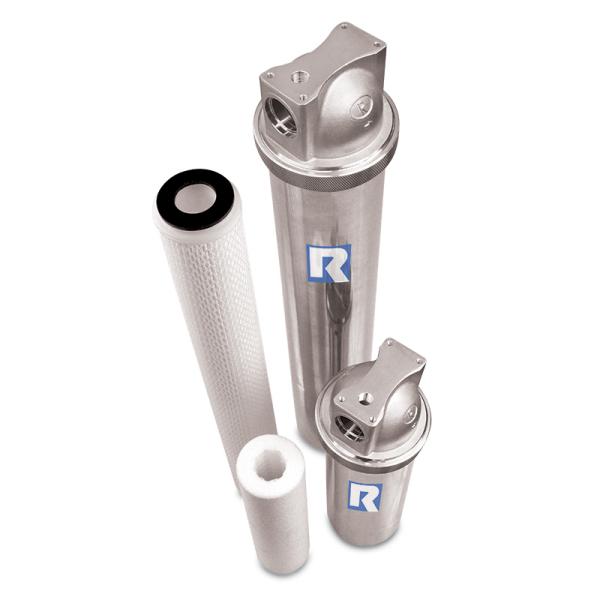

Model HSS

The Rosedale Model HSS is a 304 SS filter housing ideal for general industrial service. It features a ring-nut closure for easy access to the head and cartridge sump. The HSS is available in 10”, 20”, 30”, or 40” cartridge models and ratrings of 100 or 300 PSI. Flow rates to 40 GPM are acceptable depending on cartridge selection. Buna-N gaskets are standard, while other materials are available. A simple closure ensures quick cartridge change outs.The housings accept double-open-end cartridges. The knife edge seal at both cartridge ends eliminate by-pass.

Model 4100

Our Model 4100 is offered in carbon steel, 304, and 316 stainless steel and fills many industrial and processing applications. Available with an ASME code stamp, it has an eye nut style closure for top access to the cartridge. Accepting 10”, 20”, 30”, or 40” cartridges, the 4100 series has models with pressure ratrings at 150, 300 and 500 PSI. Flow rates to 80 GPM are acceptable depending on cartridge selection. Buna-N gaskets are standard, while other materials are available. The housings accept double-open-end cartridges. The knife edge seal at both cartridge ends, eliminate by-pass.

Model 7100

The Model 7100 has carbon steel, 304, and 316 stainless steel models. Available with an ASME code stamp, it has an eye nut style closure for top access to the cartridge. Accepting 18” or 36” cartridges, the 7100 series has models with pressure ratings at 150 and 300 PSI. Flow rates to 40 GPM are acceptable depending on cartridge selection. Buna-N gaskets are standard, while other materials are available. A simple closure for ensures quick cartridge change-outs. The housings accept double-open-end cartridges. The cartridge seals on a pedestal and is secured by means of a  threaded post and cap.

Model 8140

Model 8140units can be carbon steel, 304, or 316 stainless steel.  An ASME code stamp is optional. The 8140 has an eye nut style closure for top access to the cartridge. Accepting 35” or 40” cartridges, the 8100 series has models with pressure ratings at 150 and 300 PSI. Flow rates to 100 GPM are acceptable depending on cartridge selection. Buna-N gaskets are standard, while other materials are available. A simple closure for ensures quick cartridge change-outs. The housings accept double-open-end cartridges. The cartridge seals via double 226 o-rings in a receiving pedestal and is secured by the filter lid.

Model H8100

Model H8100 offerings are carbon steel, 304, or 316 stainless steel.  An ASME code stamp is optional. The H8100 has a hinged eye nut style closure with horizontal access to the cartridge. Accepting 20, 40" or 60” cartridges, the H8100 series has models with pressure ratings at 150 and 300 PSI. Flow rates to 400 GPM are acceptable depending on cartridge selection. Buna-N gaskets are standard, while other materials are available.The H8100 High Flow unit's design employs inside to outside flow containing the contaminant on the inside of the cartridge. The cartridge seals in a receptical with a 435 o-ring and supported by a perforated basket.
