- Minimizes backwash fluid
- Increases productivity
- Reduces process/system downtime
- Reduces maintenance costs
- Reduces labor costs
- Reduces filter element disposal and replacement costs
- Reduces operator exposure

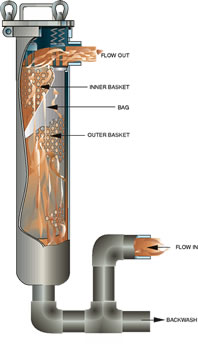

Our backwashing filter uses standard 30 inch filter bags and baskets, providing
over 600 square inches of filter surface area. The unit can be cycled through hundreds of backwashes before change-out is required. When pressure drop
across the system is too great, indicated
by the standard pressure gages, the
system is easily cycled through the backwash operation. Operation is simple, first closing the valves for the inlet and outlet, then opening the valve for the backwash outlet, which can be piped to a separate, safe location. Once that has been
accomplished, simply depress the lever
that shocks the system with factory air, causing the fluid in the housing to exit through the backwash outlet, removing the contaminant from the element at the same time. When the element is clean, usually in 30 seconds or so, simply return the three valves to their original positions
to resume filtering.
- No-spill cover
- Permanently piped housings are opened without disturbing piping or requiring special tools
- Low-pressure drop
- Adjustable-height tripod legs
- 150 psi rated housing
- Pressure indicators for monitoring system efficiency
- Carbon or stainless steel housings
- Gaskets of Buna-N, Ethylene Propylene, Viton®, or Teflon®
- Valve Seats of Buna-N, Ethylene Propylene, Viton®, or Teflon®
- 150 psi ASME code stamp
- Air eliminator
|
|
